1.Suitable for punching holes on electric switch boxes and metal sheets.
2.Easy to change dies .Make clean punch and cause no damage to the surroundings.
3.Custom punch dies are also available.
4.Please let know the height dimensions if you want to order square and rectangle dies.
packing :iron box than paper box.
Description
|

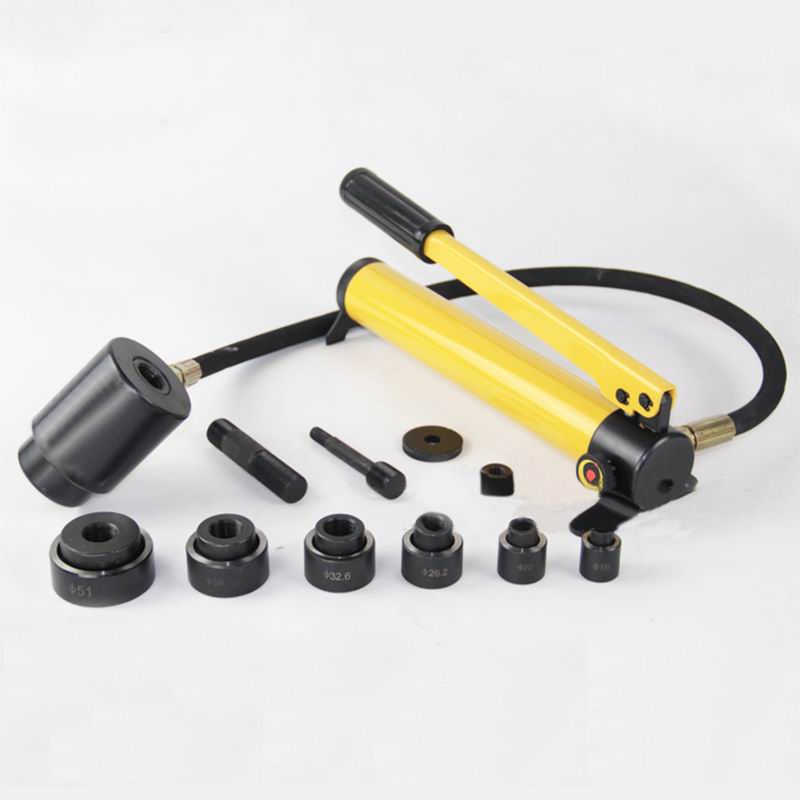

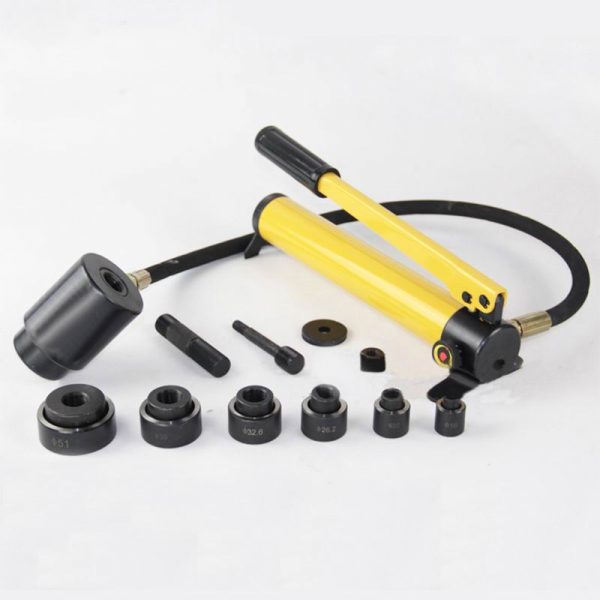

Hydraulic Punch Driver |
Punching range |
Punching force |
Weight |
Accessories |
|
SYK-8A |
thickness below 3mm (Φ16.5-Φ60.5mm) thickness below 2mm (Φ16-Φ115.5mm) |
8T |
9.5kg |
Φ16, Φ20, Φ26.2, Φ32.5, Φ39, Φ51mm |
|
SYK-8B |
thickness below 3mm (Φ16.5-Φ60.5mm) thickness below 2mm (Φ16-Φ115.5mm) |
8T |
10kg |
Φ22, Φ27.5, Φ34, Φ43, Φ49, Φ60mm |
|
SYK-15 |
thickness below 3mm (Φ16.5-Φ60.5mm) thickness below 2mm (Φ16-Φ115.5mm) |
15T |
20kg |
Φ63, Φ76, Φ89, Φ101, Φ114mm |
